DNS Environment Enclaves
Introduction
When the number of environments grow, the need for more elaborate addressing schemes arise. This tactic describes how DNS can be used to support implement a logical "grouping" called enclaves. The primary purpose of this tactic is to improve communication. A secondary effect is simplified system administration, as the DNS names used by users are not directly coupled to the IP address.
How
DNS enclaves can be used to model multiple dimensions. Relevant dimensions can vary, but the following can be used as a basis for discussion:
- Group - who needs access to the environment
- Function / usage - what types if usage is the environment intended for
- Location - where is the environment located
The DNS enclave tactic can theoretically support any number of dimensions, but we recommend that multiple levels is used when number of dimensions is more than two. For example, prefer
app1.systemX.production.company.com CNAME hostname1.locationA.company.com hostname1.locationA.company.com -> IP
instead of
app1.systemX.production.company.com CNAME hostname1.company.com hostname1.company.com -> IP
This recommendation is based on the assumption that only system administrators are interested in physical location, while developers, testers, managers, etc. really don't care where a service is located as long as it performs as expected.
See also: Dynamic addressing with service names or/and webproxy + Virtualization (OS level or para)

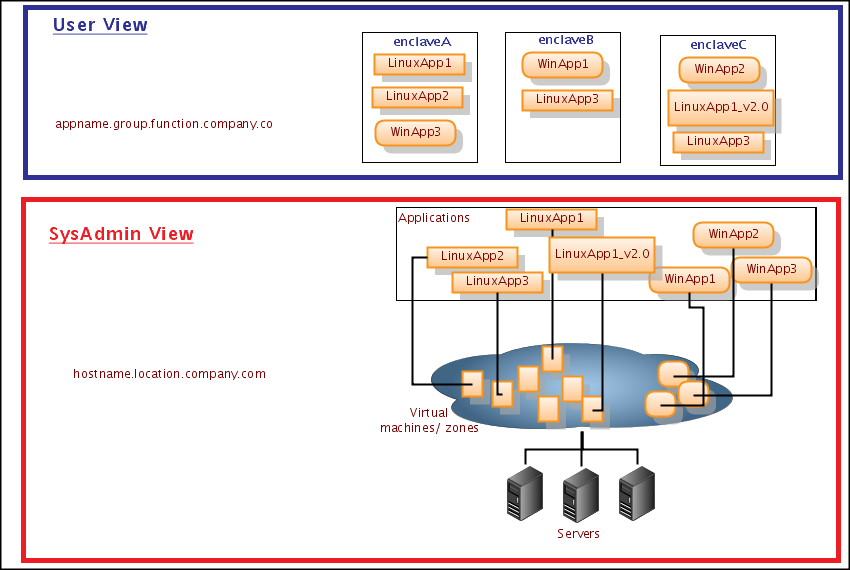

The figure is a simplified view of the concept.
List records in a domain
DNS Zone transfer can be used to list all records in a DNS zone. This is not an ideal soluation, but it is the only one available.
Assume bind DNS server.
- In /etc/bind/named.conf setup allow-transfer for the host that will perform the lookup.
- Ask for the entire zone
dig AXFR company.com @dns1.company.comfrom a host where transfer is allowed.
