Multi-environment Configuration and Deployment Strategy

WORK IN PROGRESS!

Erik's notes:

Document strategy for managing multiple environments.

• Use JNLP for deployment in test environments to reduce deployment time to virtually nothing.

  • Deploy application with Java Network Launching Protocol (JNLP)

• Use ConfigService to make it possible to manage all configurations from one user interface.

  • ConfigService should provide diff functionality to make it possible to answer questions like: What are the differences between test environmentA and production?

• Remember traceability and integration to Jira and/or HP Quality Center.

• sysadm:Virtualization is crucial to keep the costs down.

• sysadm:Dynamic addressing with service names is also required.

---

Deployment

Requirements, drivers and goals

• Automation

• Support for running applications as daemons

  • Start stop script
  • Start at bootup

• Short roundtrip-time for deploy of a new version

Implementation

Make it possible to use either RPM packages OR Deploy application with Java Network Launching Protocol (JNLP) with JNLPDownloadServlet for deployment.

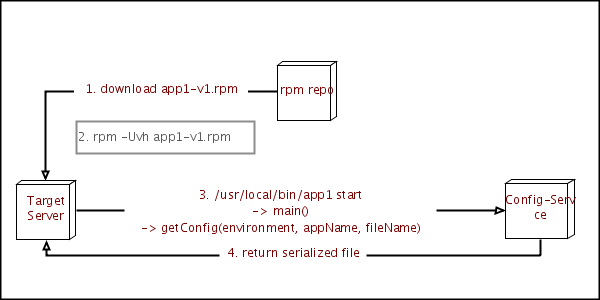

RPM for production (and for system administrators) and JNLP for test environments (testers and developers) is the general idea. The sequence for webstart is shown in JNLP - deployment A rough sketch of the deployment sequence for rpm is shown below.

See also RPM Deployment with Java Service Wrapper for how to generate the rpm packages with maven.

Logging

• Application should run with default log4j.xml file, but it must be possible to override it.
  • Deployment (outputPath for logfile), usage (what and at what granularity) and can be both cluster-common and node specific.
  • Put log4j.file in a jar and copy it to an a conf-folder on disk after first startup of a new version? Manually deleting this file will then result in a clean fetch from the jar when restarting the application.

Dynamic addressing

See sysadm:Dynamic addressing with service names

Virtualisation to keep the cost down

sysadm:Virtualization

Other needs that might need to be addressed by the same architecture

• Need functionality for "forcing" a restart of a service. E.g., when a need version of a service it uses is deployed. TODO: Is this an appropriate location for this "reboot button"? Or can/should the webstart-webapp be used instead?

• StartupChecker-helper which has functionality to check availability of shared resources like JMS-server, database (when db is used for integration instead of a Repository-approach), ESB, etc. This functionality should be split out into a separate project and shared between all applications/services that use these external services. This will ensure a more consistent startup phase and make it easier for system administrators to setup a complex environment.

• Live migration of virtual machines (move a virtual machine between physical computers).
